Basic Info

Model No.: XYA4

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N

Additional Info

Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port

Product Description

Product Description:

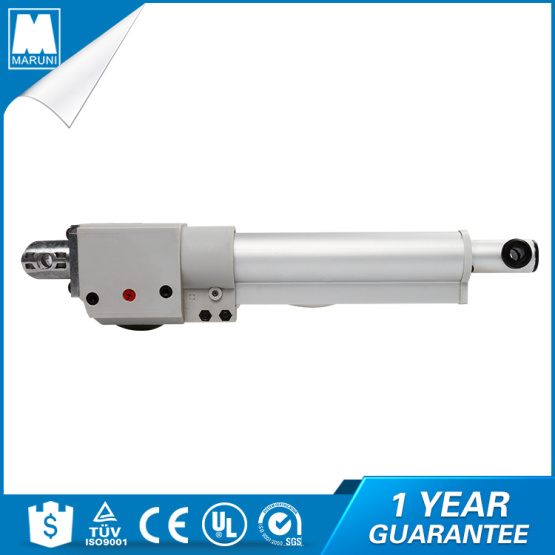

Synchronous Linear Actuator For Patient Lift

Xinyi  Corporation founded in 1990,had always been devoted to the research and developmengt of the industrial automation.2002 conpleted the first batch of Linear Actuator For Medical Care.Since then it has determined the automation of medical service &nursing and furniture as its main direction.

12V Electric Patient Lift exposes caregivers to a great risk of being injured. Therefore it is essential for us to improve their quality of life, and thus of their patients, by offering safe, ergonomic and efficient Medical Care Motor.

With this efficient and ergonomic system, quick lifting and smooth ramps,Xinyi`s Linear Actuator For Lift System can save care centres time, money and people`s health.

Xinyi`s product range for Patient lifts contains lifting and leg spread actuators, control boxes and hand controls. DC Motor For Patient Lift can also be connected to Xinyi's Service and Usage Tracking tools, RST10 and RUT10.  Through these tools, the caregiver can control customized settings, perform service tasks, monitor system behaviour and export usage data.

In the list below are products that are suitable for patient handling systems.

Xinyi Linear Actuator For Patient Lift have the below features:

Emergency stop button

Cable management bracket

Electrical lowering button

Easy to charge

Easy installation

Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 6000N,Pull 4000N

Speed: (5mm/s  6000N)   (10mm/s 3000N) (20mm/s 2000N)  (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5℃~40℃

Min.install dimension:285mm(175+stroke) [From center of Mounting Holes]

Max.stroke:450mm

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey

Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector
