Basic Info

Model No.: XYA4

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N

Additional Info

Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port

Product Description

Product Description

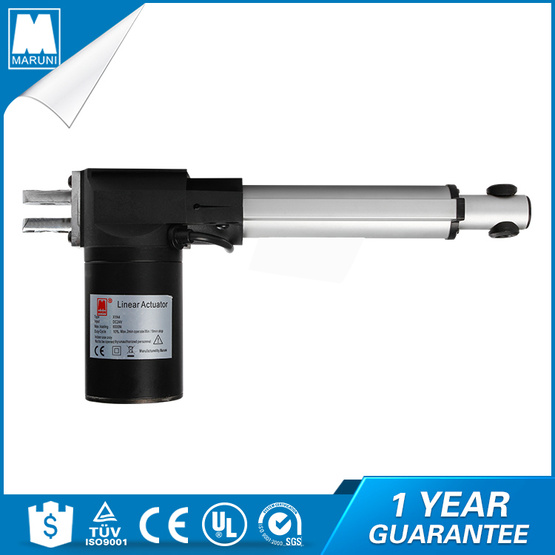

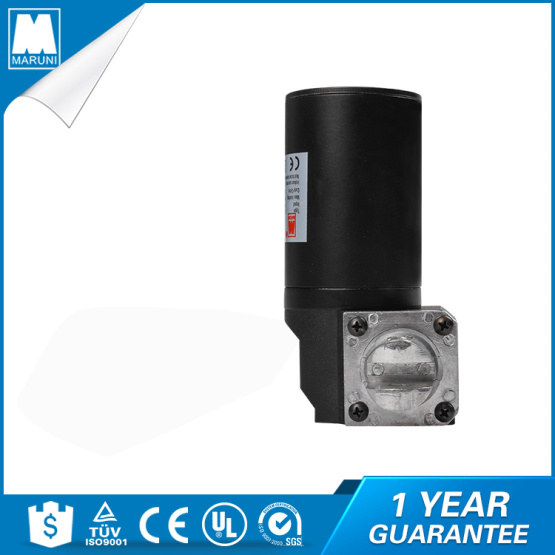

Power Recliner Replacement Motor Actuator

24v Linear Actuator For Recliner is an actuator that creates to the circular motion of a conventional ecectric motor.6000N Linear Actuator For Recliners are high quality with low noise and over-load protection are installed.Electric Actuator for Electric Chair Control are used in machine tooles and industrial machinery,in computer peripherals such as disk drives and printers,in valves and dampers,and in many other places where linear motion is required. Linear Actuator for Recliner Chairs are quiet and powerful design.Power recliner motor replacement,the thrust up to 6000N in push,and up to 4000N in pull.Elegant and compact design with small installation dimensions.

Features:Basic and economic design,Up to 6000N load capacity,direct mounting on control box possibility,Long lifetime.

Mimimum installation size(distand between the push holes and the two holes before and after the return of the putter)L=S(stroke)+175mm,the distance between the push and the two holes before and after is extended to =2SX(stroke)+175mm.

Standard protection class:IP 54.Noise level 48 dB.

Application:Electric linear actuator for recliner will open and close the lift mechanism of power recliner or lift chair.Connects to motor handset hand control via 5 pin style connector,and connects to the power transformer via the stand 2 pin style connector.

General Features:

• Voltage of motor: 12, 24, 36V DC or 24V DC (PTC)
• Maximum load: 6,000N in push
• Maximum load: 4,000N in pull
• Maximum speed at full load: 23.4mm/s (with 1,000N in a push or pull condition)
• Stroke:100~400(option＞400)mm
• Minimum installation dimension: ≥ Stroke+175mm
• Color: Black or grey
• IP rating: Up to IP54W
• Certificate: IEC60601-1, ES60601-1, EN60601-1-2, EMC
• Operational temperature range: +5°C~+45°C
• Options: Safety nut, quick release, Hall sensors,Reed switch option

Noted:

When the stroke is less than 110mm,the Lmin is 283mm.If the stroke is more than 110mm,Lmin=175+Stroke

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically.

Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector
