Basic Info

Model No.: XYA3

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N

Additional Info

Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port

Product Description

Product Description:

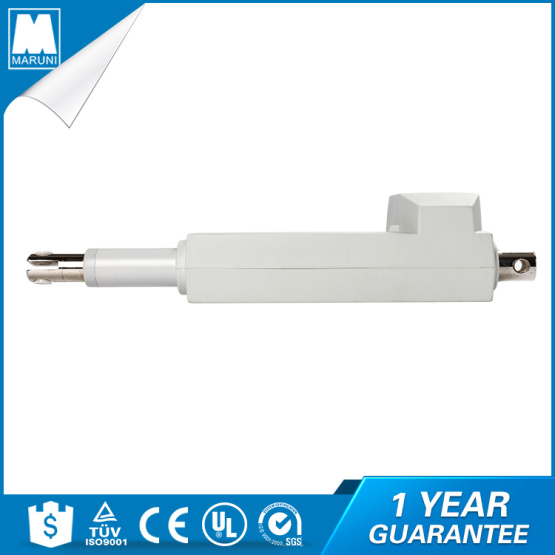

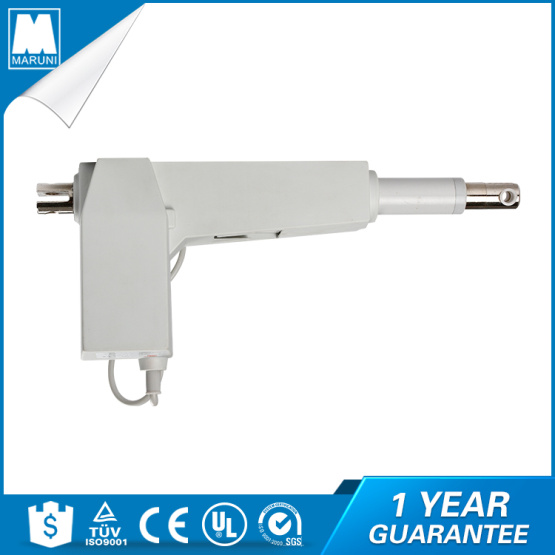

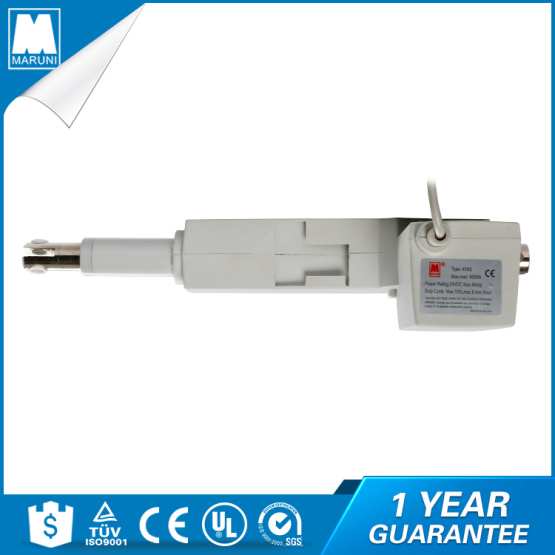

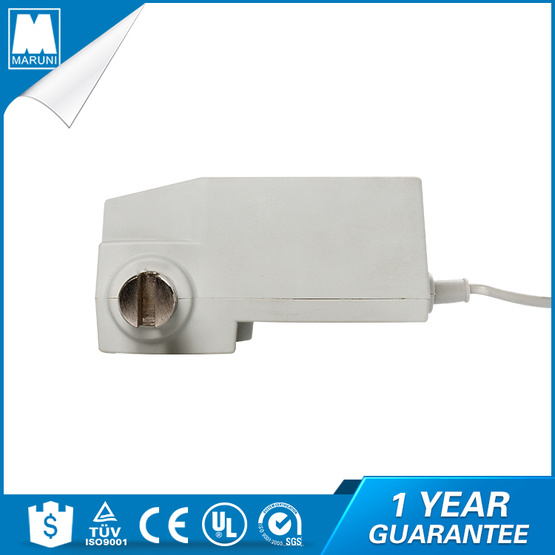

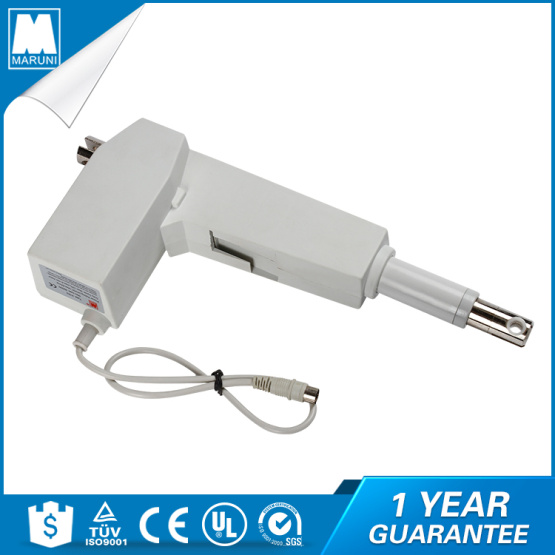

Massage Sofa Actuator

Xinyi Linear Actuators are Widely used in Smart Furniture(Including Electric Recliner,Electric Lift Chair,Electric Sofa,Electric Massage Chair,Smart Kitch Hood,Adjustable Bed,Adjustable Table),Medical Care(Inclding Patient Lift,Medical Bed,Dental Chair,Adjustable Exam Table Actuator,Electric Wheelchair).

Electric Massage Sofa Motor can be found in many different appliances and machinery, but one of its most prevalent uses is in the application and creation of furniture. In furniture making, they help automate a number of processes and functions such as eliminating the monotony of everyday tasks, which in turn speeds up production as well as helping prevent workplace injuries in the factories that make furniture.

It is available with optional IP 54 protection and Hall sensors for position feedback.Its compact design supports load design supports load rating up to 6000N.And actuator for electric sofa is recommended to be used for chair applications.6000N Massage Sofa Motor,It has the below features:up to 6000N load,quiet and powerful design.The current &speed are tested when the actuator is extending under push load.

The Input Voltage for this Linear Actuator For Sofa Motor is 12VDC/24VDC/36VDC.In addition,the XYA2 Electric Sofa Motor is available with an optional IP 54,IP 66 or IP 66W rating.Smart Furniture is typical application for the XYA3 series linear actuator. Office Chair Linear Actuator are high quality with low noise,over-load protection are installed.Actuator For Massage Sofa  are widely used in machine tooles and industrial machinery,in computer peripherals such as disk drives and printers,in valves and dampers,and in many other places where linear motion is required.6000N Stair Lift Chair are quiet and powerful design.Electric sofa,the thrust up to 8000N in push,and up to 6000N in pull.Elegant and compact design with small installation dimensions.

ZHEJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY CO.LTD will provide a full-service to keep you up and running and meet your unique equipment requirements. If you are interested in China Sofa Actuator Linear, You will be amazed by the variety of the product choices such as linear actuator, electric linear actuator, actuator.

Features:Basic and economic design,Up to 8000N load capacity,direct mounting on control box possibility,Long lifetime.

Mimimum installation size(distand between the push holes and the two holes before and after the return of the putter)L=S(stroke)+175mm,the distance between the push and the two holes before and after is extended to =2SX(stroke)+175mm.

Standard protection class:IP 54.Noise level 48 dB.

Application:Electric linera actuator for recliner will open and close the lift mechanism of power recliner or lift chair.Connects to motor handset hand control via 5 pin style connector,and connects to the power transformer via the stand 2 pin style connector.

General Features:

· Voltage of motor: 12, 24, 36V DC or 24V DC (PTC)

· Maximum load: 8,000N in push

· Maximum load: 6,000N in pull

· Maximum speed at full load: 23.4mm/s (with 1,000N in a push or pull condition)

· Stroke:100~400(option＞400)mm

· Minimum installation dimension: ≥ Stroke+175mm

· Color: Black or grey

· IP rating: Up to IP54W

· Certificate: IEC60601-1, ES60601-1, EN60601-1-2, EMC

· Operational temperature range: +5°C~+45°C

· Options: Safety nut, quick release, Hall sensors,Reed switch option

Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector
