Basic Info

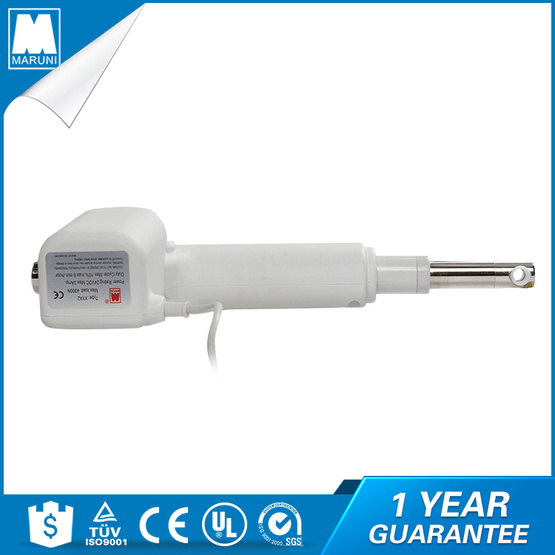

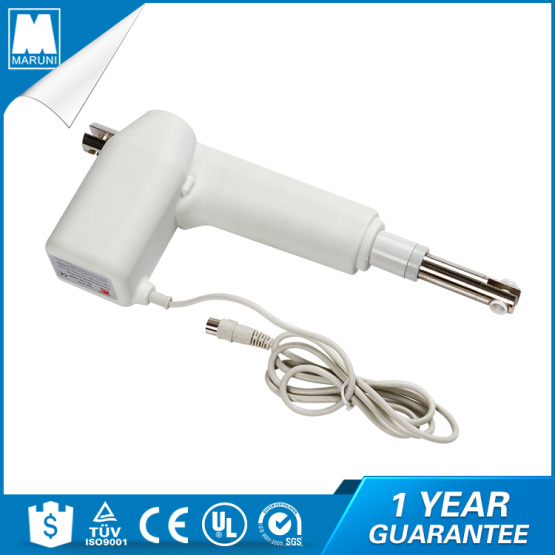

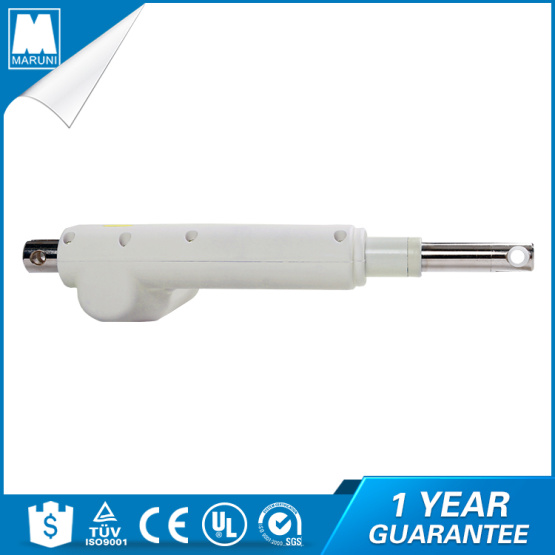

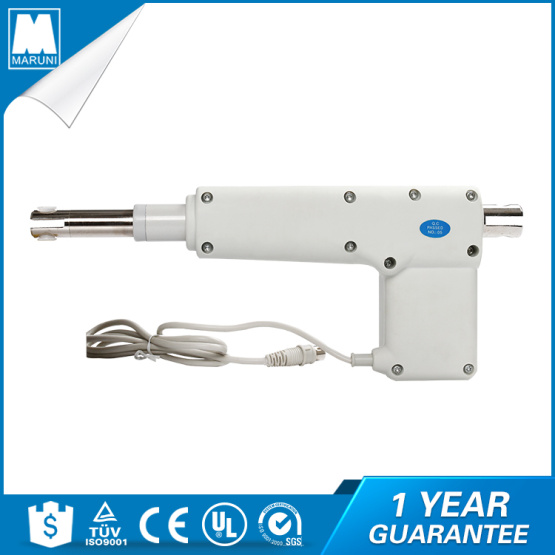

Model No.: XYA2

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N

Additional Info

Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port

Product Description

Product Description:

Linear Actuator Control System

ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY had always been devoted to the research and development of the Linear Actuator Control System and Power Supply.

control boxes are ZHEJIANG XINYI  between actuators (linear, dual or lifting columns) and the related controls used to administer their adjustment. Control boxes are a broad family of intelligent hubs allowing adjustment of various actuator applications. From hospitals and offices to waste water facilities, industrial automation, and heavy-duty machinery within agriculture and construction. They all benefit from actuator systems or solutions with a ZHEJIANG XINYI control box.

LINAK control boxes help ensure movement in applications is smooth, safe, low-energy, low-noise and very easy to monitor and control remotely. Several of them come in environmentally friendly materials and they are designed to be mounted and installed with minimum effort.

ZHEJIANG XINYI actuators come with a control box integrated within the actuator itself. That makes sense in for instance adjustable comfort furniture, where space is limited, or in harsh outdoor environments, where protection against water or dust is needed

ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY  offers Actuator Control System

These specialized actuators offer the following benefits:

•   Designed for Actuator
•  Controls one linear actuator
•  Supported input signals include USB, Voltage, Current, RC Servo, and PWM
• On board adjustment of speed, sensitivity, and stroke limits of DC Motor

Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 6000N,Pull 4000N

Speed: (5mm/s  6000N)   (10mm/s 3000N) (20mm/s 2000N)  (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5℃~40℃

Min.install dimension:285mm(175+stroke) [From center of Mounting Holes]

Max.stroke:450mm

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey

Noted:

When the stroke is less than 110mm,the Lmin is 283mm.If the stroke is more than 110mm,Lmin=175+Stroke

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically.

Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector

produce linear actuator with best motor

We produce linear actuator with clean production line
