Basic Info

Model No.: XYA5

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N

Additional Info

Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port

Product Description

Product Description

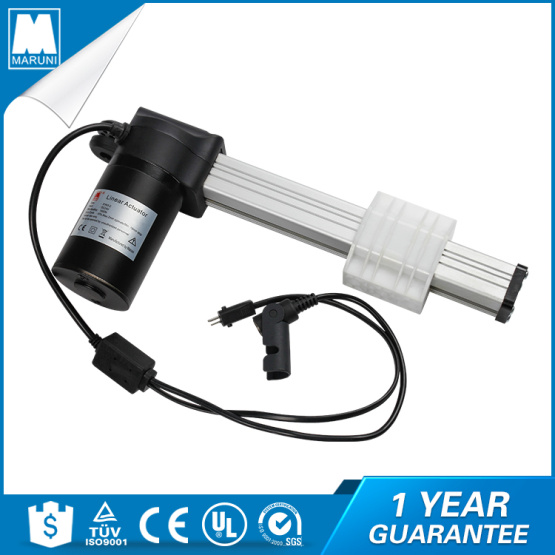

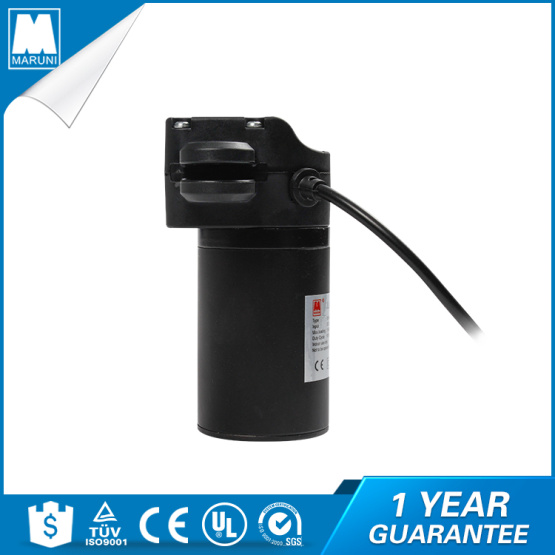

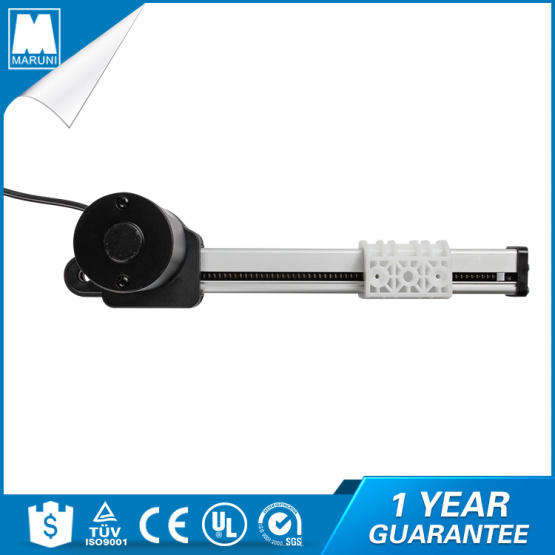

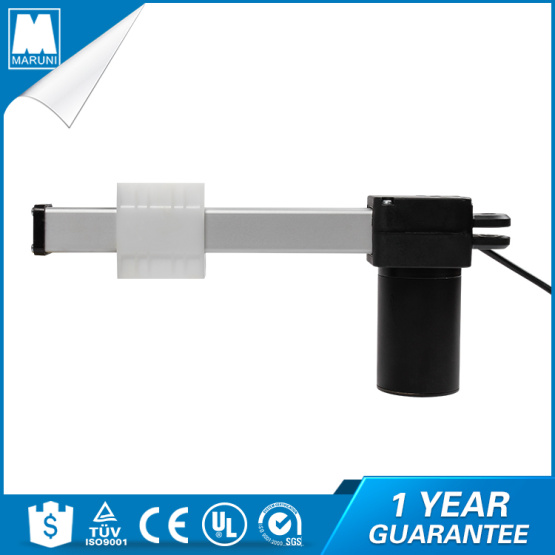

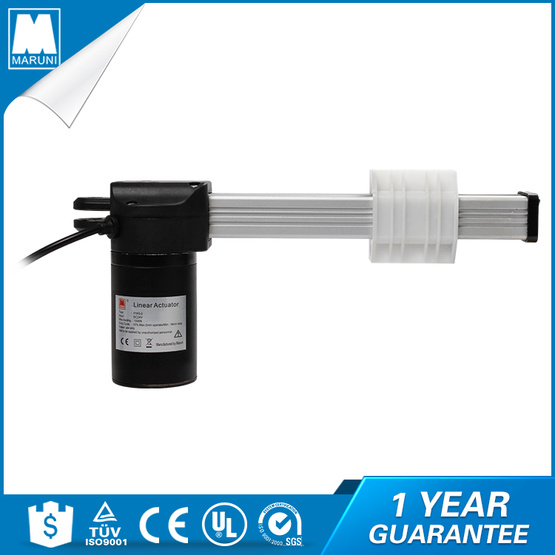

Lift Chair Linear Actuator With Control System

Product Description

24V 6000N Electric Lift Chair  is an actuator that creates to the circular motion of a conventional ecectric motor.

ZHEJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY CO.LTD,It's well known for chair motor, product quality and safety is a stronger priority for this equipment industry and also for the buyers, here you are offered a greater chance to find trustworthy manufacturers & factories who are delivering high levels of performance, efficiency and reliability in their products all the time.

Lift chair transformer are high quality with low noise,over-load protection are installed.High Speed Electric Actuator For Chair Control are widely used in machine tooles and industrial machinery,in computer peripherals such as disk drives and printers,in valves and dampers,and in many other places where linear motion is required. Linear Actuator for lift Chairs are quiet and powerful design.Dc lift chair,the thrust up to 8000N in push,and up to 6000N in pull.Elegant and compact design with small installation dimensions.

Features:Basic and economic design,Up to 8000N load capacity,direct mounting on control box possibility,Long lifetime.

Mimimum installation size(distand between the push holes and the two holes before and after the return of the putter)L=S(stroke)+175mm,the distance between the push and the two holes before and after is extended to =2SX(stroke)+175mm.

Standard protection class:IP 54.Noise level 48 dB.

Application:Electric linera actuator for recliner will open and close the lift mechanism of power recliner or lift chair.Connects to motor handset hand control via 5 pin style connector,and connects to the power transformer via the stand 2 pin style connector.

Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 6000N,Pull 4000N

Speed: (5mm/s  6000N)   (10mm/s 3000N) (20mm/s 2000N)  (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5℃~40℃

Min.install dimension:285mm(175+stroke) [From center of Mounting Holes]

Max.stroke:450mm

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey

Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector
