Basic Info

Model No.: XYA2

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N

Additional Info

Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port

Product Description

Product Description:

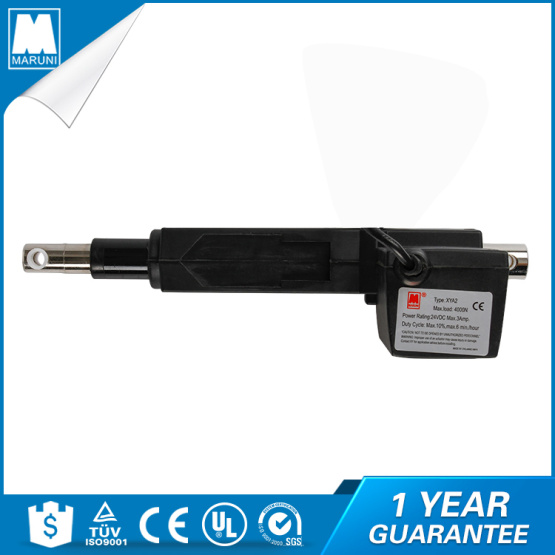

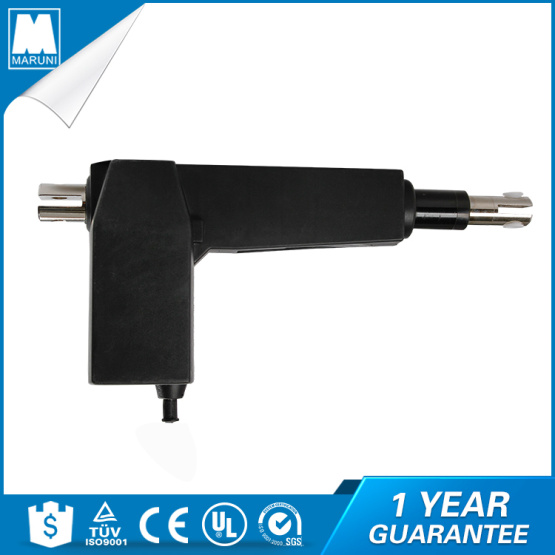

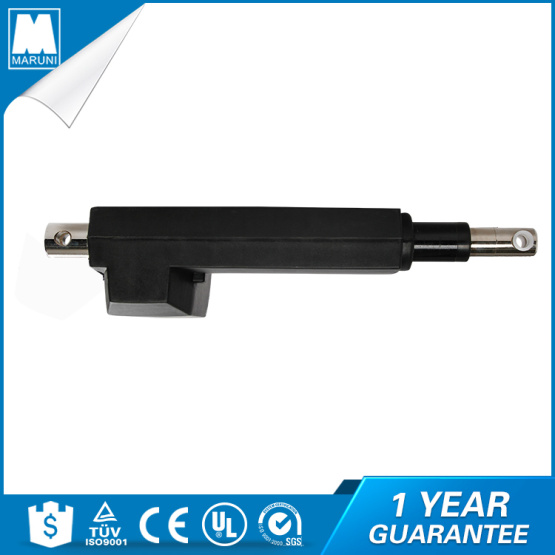

Linear Actuator For Wheelchair

ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY had always been devoted to the research and development of the Linear Actuator For Wheelchair.

Power Wheelchair Actuator to provide the user with movement. Sitting in the same position can get tiring for wheelchair users. Changing positions in a static wheelchair can make the person uncomfortable and could lead to pressure sores. Integrating a wheelchair with actuators can help provide movement to different parts of the wheelchair, which will allow users to adjust their positions.

ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY  offers linear and Wheelchair Lift Linear Actuator These specialized actuators offer the following benefits:

· Quality raw materials engineered to perfection

· Reliability and safety

· Durable products

· Small in size

· Accurate vertical and horizontal adjustment

· Smooth and quiet operation

· Increased freedom of design

· Reduced maintenance due to use of high quality products

Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 6000N,Pull 4000N

Speed: (5mm/s  6000N)   (10mm/s 3000N) (20mm/s 2000N)  (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5℃~40℃

Min.install dimension:285mm(175+stroke) [From center of Mounting Holes]

Max.stroke:450mm

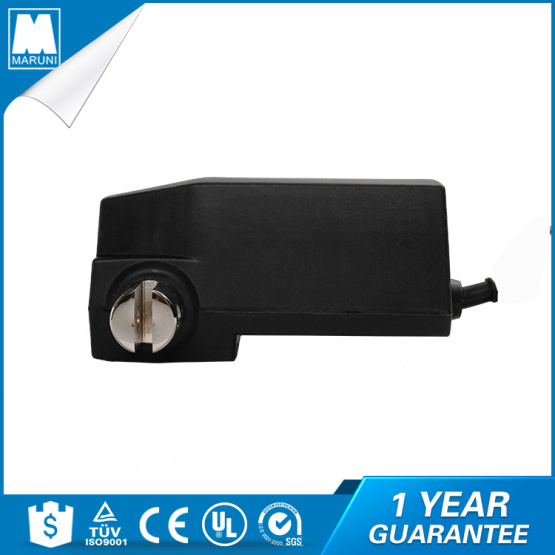

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey

Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector
