Basic Info

Model No.: XYA2

Certification: FCC, CCC, SGS, RoHS, ISO, CE

IP Rating: IP54

Limit Switch: Built-in

Voltage: 24VDC

Standard Stroke: 500mm

Max Thrust: 6000N

Additional Info

Productivity: 400,000pieces

Brand: Xinyi

Transportation: Ocean,Land,Air

Place of Origin: Shaoxing,Zhejiang,China

Certificate: ISO9001

Port: Ningbo Port,Shanghai Port

Product Description

Product Description:

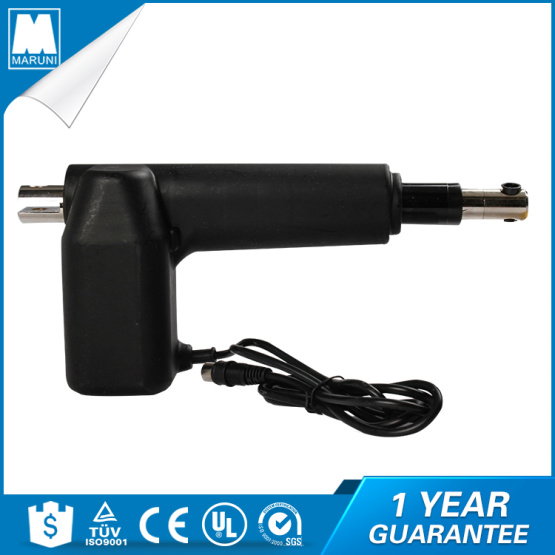

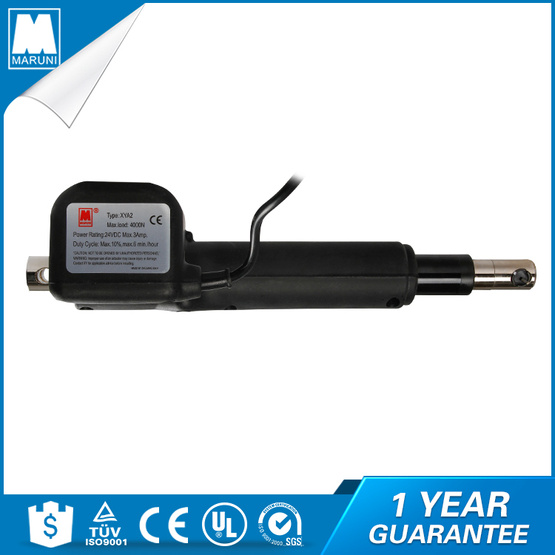

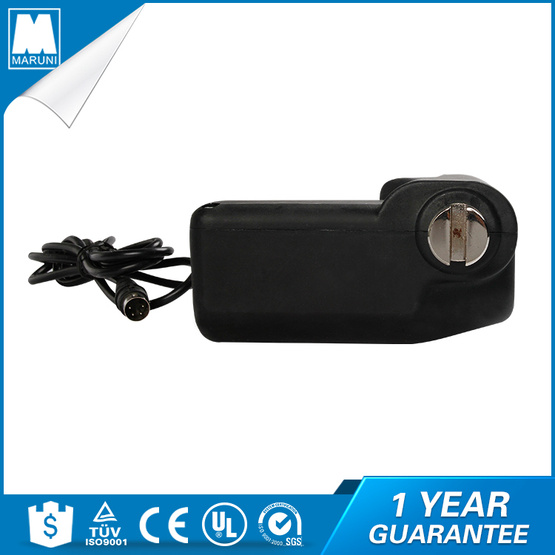

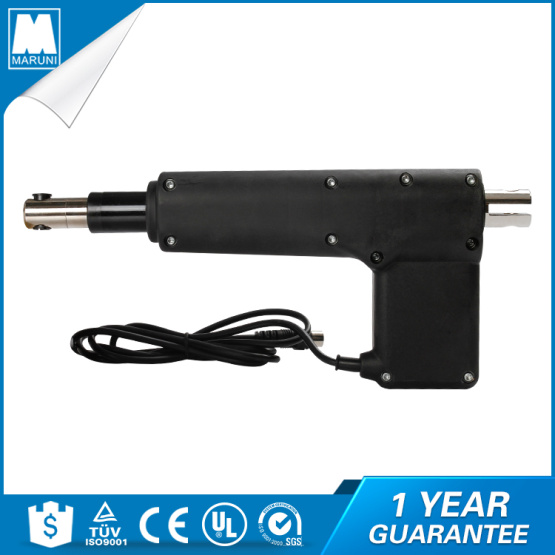

24V Medical Examination Table

ZHJIANG XINYI INTELLIGENT DRIVING TECHNOLOGY High Capacity Medical Examination Table create smooth lifts and adjustments in couches and tables for treatment and examination, and help improve ergonomics for practitioners. Specifications depend on individual needs and requirements. Whether you want a basic system for your treatment and examination couch/table, or require an advanced, customised solution,400MM Stroke Adjustable Exam Table Actuator has the product portfolio to design the right system setup for you using three different solutions. Below are examples for basic, medium and advanced systems.

Following are some of the benefits of using our actuator sLow Noise Lifting Exam Table:

· Simple Designs: Our adjustable exam table linear actuators have easy-to-install designs. Innovative Actuator System Table provide savings in terms of compact designs, less maintenance, high reliability, and easy repairs. Also, our electric actuators can maintain loads, even without continuous power supply, so they are less expensive and easier to operate.

· Small Footprint: We employ advanced technologies to build innovative actuator systems with a small footprint. Ergonomic Treatmement Actuator have a smaller number of components. This optimized design provides more flexibility in terms of application.

· Simple Assembly: Medical Examination Table can be easily connected with wires and cables. This simple assembly process helps save time, labor costs, and improves equipment performance.

· Supports Advanced Features: Our electrical linear actuators can be integrated with programmable controllers that control various operations in advanced electrical couches and tables.

· Silent Operation: Our electric linear actuators and electric actuators are controlled by quiet electrical motors, which makes them suitable for various medical applications such as home care beds, hospital beds, etc.

Technical data:

Input voltage:12VDC/24VDC/36VDC

Max.load:Thrust 6000N,Pull 4000N

Speed: (5mm/s  6000N)   (10mm/s 3000N) (20mm/s 2000N)  (40mm/s 800N)

Duty cycle:10%,stop for 18 mins after continuoulsy working 2 mins

Ip grade:IP 54

Limit switch:Built-in limit switch,non-adjustable

Operation temperature:+5℃~40℃

Min.install dimension:285mm(175+stroke) [From center of Mounting Holes]

Max.stroke:450mm

Tail connector:90º rotation available

Memory function:optional

Colour:Black/Grey

Why choose us:

1.100% copper motor. 5. 6000N=600KG=1230LBS Max force 6. 5mm /second=0.2inch/second speed

2. Wiring included, pre-installed,perfect wire cable.

3. Built-in clutch and limited switch prevents over-extending and over-compressing.

4. Aluminum Alloy House material and Aluminum Alloy extend shaft material 10.

5.Steel connector
